3 ControlCenter3

Note

The features available to you in ControlCenter3 may vary depending on the model number of your machine.

Using ControlCenter3

ControlCenter3 is a software utility that lets you quickly and easily access your frequently used applications. Using ControlCenter3 eliminates the need to manually launch specific applications. ControlCenter3 has the following operations:

Scan directly to a file, E-mail, word processor or graphics application of your choice. (1)

Access to the Custom Scan settings. Custom Scan buttons let you configure a button to meet your own application needs. (2)

Access to the advanced features of PhotoCapture Center™. (3)

Access the Copy features available via your PC. (4)

Access the ‘PC-FAX’ applications available for your device. (5)

Access the settings available to configure your device. (6)

You can choose which machine ControlCenter3 will connect with from the Model drop-down list. (7)

You can also open the configuration window for each function and a link to the Brother Solutions Center by clicking the Configuration button. (8)

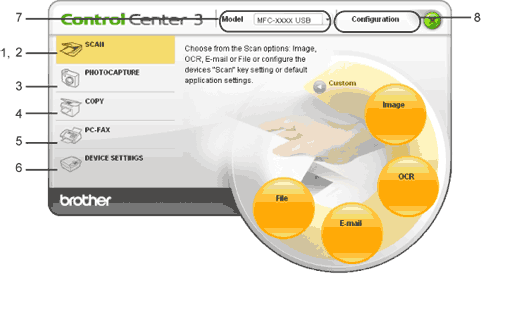

Modern

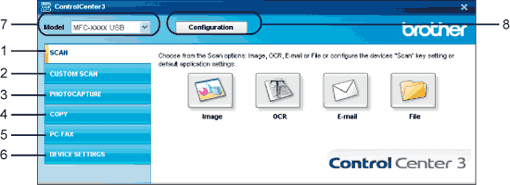

Classic

Note

•	To be able to choose another connected model from the Model drop-down list, you must have the MFL-Pro Suite Software installed on your PC for that model.
•	To use the Modern user interface, you need to have Macromedia Flash Player 8 or greater installed.If you do not have it installed, the installer will open Internet Explorer so you can download the latest version of the Flash Player. If Internet Explorer does not open automatically, you should open it manually.
•	The modern user interface is not supported in Windows^® XP Professional x64 Edition.

Switching the user interface

You can choose the Modern or Classic user interface for ControlCenter3.

1	To switch the user interface, click the Configuration button and select SETUP then SKIN SELECT.

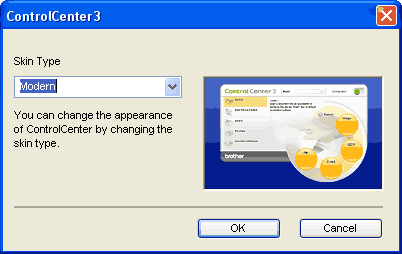

2	From the SKIN SELECT dialog, you can choose your preferred user interface.
