SCAN

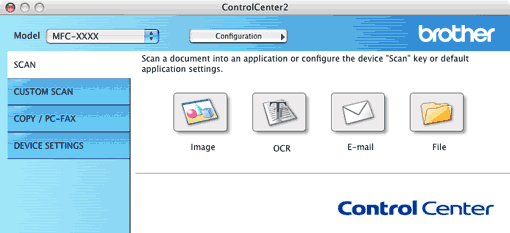

There are four buttons for the Scan to Image, Scan to OCR, Scan to E-mail and Scan to File applications.
Note Note

You can configure your machine’s Scan key for each ControlCenter2 button in the Device Button tab.
Screen

(example: Apple® PreView)

The Scan to Image feature lets you scan an image directly into your graphics application for image editing. To change the default settings, click the Scan to Image button while holding down the Ctrl key and choose Software Button.

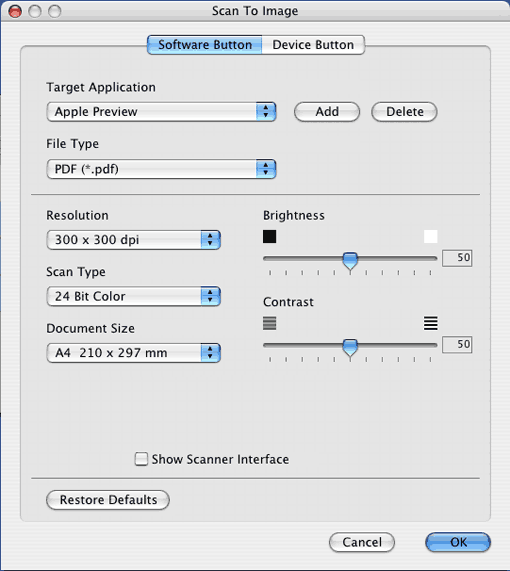

Screen
If you want to scan and then crop a portion of a page after pre-scanning the document, check the Show Scanner Interface box.
Change the other settings, if needed.
To change the destination application, click the Target Application pop-up menu and choose your preferred application. You can add an application to the lists by clicking the Add button.
Screen
Enter the Application Name (up to 30 characters) and choose your preferred application by clicking the Browse button. Also choose the File Type from the pop-up menu.

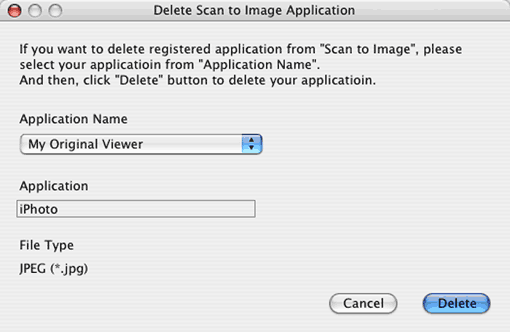

Screen
You can delete an application that you have added. Just choose the Application Name and click the Delete button.
Note Note

This function is also available for Scan to E-mail and Scan to OCR. The window may vary depending on the function.
