You can select from two types of screens to set as the Main Home screen: Home screens and Shortcuts screens. When a Home screen is displayed, swipe left or right or press or to display the other Home screens.

The Main Home screen displays the machine's status when the machine is idle. When displayed, this screen indicates that your machine is ready for the next command.

If Active Directory Authentication or LDAP Authentication is enabled, the machine's control panel is locked.

The available features vary depending on your model.

From the Home screens, you can access the various settings.

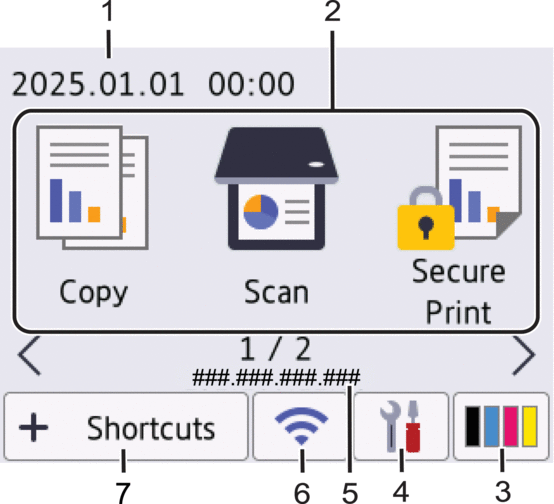

Home screen: Screen 1

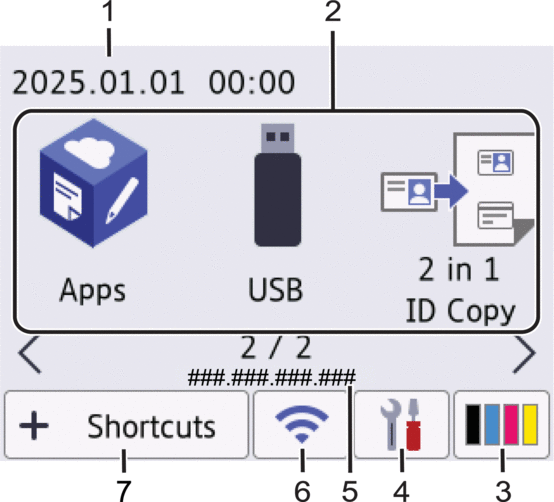

Home screen: Screen 2

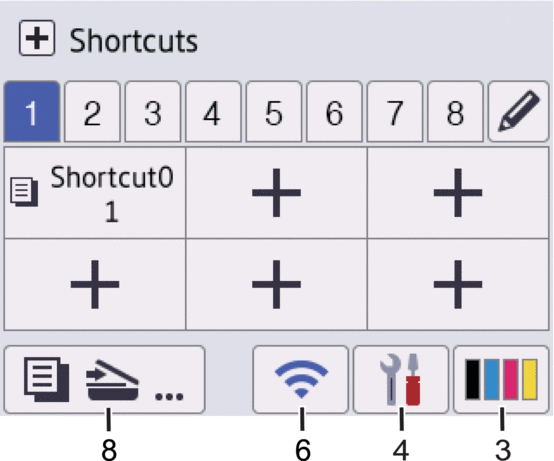

Shortcuts screen

Create Shortcuts for frequently used operations, such as sending a fax, making a copy, and scanning.

Eight Shortcuts tabs are available with six Shortcuts on each Shortcuts tab. A total of 48 Shortcuts are available.

1. Date & Time

   Displays the date and time set on the machine.

2. Function Icons

   • [Copy]

     Press to access Copy mode.

   • [Scan]

     Press to access Scan mode.

   • [Secure Print]

     Press to access the [Secure Print] option.

   • [Apps]

     Press to connect your machine to the Brother Apps service.

   • [USB]

     Press to access the USB menu and select [Scan to USB] or [Direct Print] options.

   • [2 in 1 ID Copy]

     Press to access the 2 in 1 ID Copy option.

3. (Toner)

   Displays the remaining toner life. Press to access the [Toner] menu.

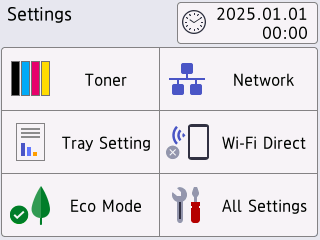

4. (Settings)

   Press to access the [Settings] menu.



   If the Setting Lock function has been turned on, a lock icon appears on the LCD. You must unlock the machine to change the settings.



   • Toner

     • Displays the remaining toner life.
     • Press to access the [Toner] menu.

   • / Network

     • Press to set up a network connection.
     • A four level indicator on the screen displays the current wireless signal strength if you are using a wireless connection.

   • Wi-Fi Direct (For DCP Models)

     Press to access the [Wi-Fi Direct] menu.

   • Tray Setting

     Press to access the [Tray Setting] menu.

   • Eco Mode

     Press to access the [Eco Mode] menu.

   • All Settings

     Press to access all machine settings.

   • Date & Time

     • Displays the date and time set on the machine.

     • Press to access the [Date & Time] menu.

5. IP Address

   If the IP Address setting in the Display Information menu has been turned on, your machine's IP Address appears on the Home screens.

6. or (Wireless Status)

   Press to configure wireless settings.

   If you are using a wireless connection, a four-level indicator displays the current wireless signal strength.

   	Wireless LAN Disabled

7. [Shortcuts]

   Press to access the [Shortcuts] screen.

8. (Home screen)

   Press to access the Home screens.
