Pack the Machine and the Toner Cartridge Together

WARNING

  • When you move the machine, carry the machine as shown in the illustration.

    DCP-L5510DN/MFC-L5710DN/MFC-L5710DW:


    DCP-L5660DN/MFC-L5915DW/MFC-L6720DW/MFC-L6915DW:


  • To prevent possible injuries, at least two people should lift the product by holding it at the front and back.


  • If the machine has Optional Tray(s) installed, remove the Optional Tray(s) BEFORE moving the machine. Attempting to move the machine without removing the Optional Tray(s) may cause injury to you or damage to the machine.

  • Pack the Optional Tray(s) separately in the original carton with original packing material.

  • If for any reason you must ship your machine, carefully repack the machine in the original packaging to avoid any damage during transit. The machine should be adequately insured with the carrier.
  1. Press and hold image to turn the machine off. Leave the machine off for at least 10 minutes to cool down.
  2. Disconnect all the cables, and then unplug the power cord from the electrical socket.

    Some models are equipped with a non-detachable AC power cord. If your cord is not detachable, fold it loosely and rest it on top of the machine so it packs easily.

  3. Put the machine into the bag it originally came in.

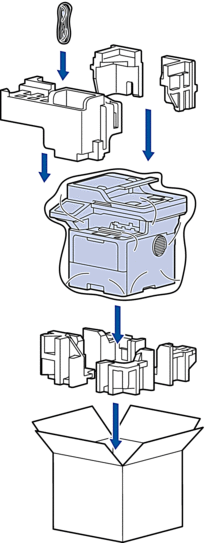

  4. Pack the machine, the printed materials, and the AC power cord (if applicable) in the original carton with the original packing material as shown. (The original packing material may differ depending on your country or model.)
  5. Close the carton and tape it shut.
  6. If you have a Lower Tray, repack it as shown.
