Features in the Windows® printer driver

For more information, see the Help text in the printer driver.
Note Note
•
The screens in this section are from Windows® XP. The screens on your PC will vary depending on your operating system.
•
You can access the Printing Preferences dialog box by clicking Printing Preferences... in the General tab of the Printer Properties dialog box.

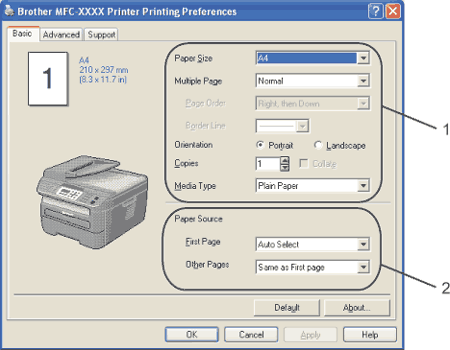

Basic tab

You can also change settings by clicking the illustration on the left side of the Basic tab.
Screen
1
Choose the Paper Size, Multiple Page, Orientation, Copies and Media Type (1).
2
Choose the Paper Source (2).
3
Click OK to apply your chosen settings.
To return to the default settings, click Default, then OK.

Paper Size

From the drop-down box choose the Paper Size you are using.
Page Top

Multiple Page

The Multiple Page selection can reduce the image size of a page allowing multiple pages to be printed on one sheet of paper or enlarge the image size for printing one page on multiple sheets of paper.
Graphic
Graphic
4 in 1
1 in 2 X 2 pages
Page Top

Page Order

When N in 1 option is selected, the page order can be selected from the drop-down list.
Page Top

Border Line

When printing multiple pages on one sheet with the Multiple Page feature you can choose to have a solid border, dash border or no border around each page on the sheet.
Page Top

Orientation

Orientation selects the position of how your document will be printed (Portrait or Landscape).
Graphic
Graphic
Portrait
Landscape
Page Top

Copies

The copies selection sets the number of copies that will be printed.
Page Top

Collate

With the Collate check box selected, one complete copy of your document will be printed and then repeated for the number of copies you selected. If the Collate check box is not selected, then each page will be printed for all the copies selected before the next page of the document is printed.
Graphic
Graphic
Collate box checked
Collate box not checked
Page Top

Media Type

You can use the following types of media in your machine. For the best print quality, select the type of media that you wish to use.
Plain Paper (Thick)
Plain Paper
Thick Paper
Thicker Paper
Bond Paper
Transparencies
Envelopes
Env. Thick
Env. Thin
Recycled Paper

Note Note
•
When using heavier weight paper, envelopes or rough paper choose Thick Paper or Thicker Paper. For bond paper, choose Bond Paper.
•
When you use envelopes, choose Envelopes. If the toner is not fixed to the envelope correctly when Envelopes has been selected, choose Env. Thick. If the envelope is crumpled when Envelopes has been selected, choose Env.Thin.
Page Top

Paper Source

You can choose Auto Select, Tray1 or Manual and specify separate trays for printing the first page and for printing from the second page onwards.
