NoteThis chapter provides a summary of the machine’s specifications. For additional specifications, visit http://www.brother.com/ for details. |
Memory Capacity | Standard | 256 MB | |
Power Source | USA | 100 - 120 V AC 50/60 Hz | |
Latin American Countries | 220 - 240 V AC 50/60 Hz | ||
LCD (Liquid Crystal Display) | 3.7 in. (93.4 mm) TFT Color LCD Touchscreen1 | ||
Power Consumption2 | USA/Canada | Scanning3 | Approx. 20 W |
Ready | Approx. 4.0 W | ||
Sleep | Approx. 2.0 W | ||
Power Down | Approx. 0.35 W | ||
Latin American Countries | Scanning3 | Approx. 20 W | |
Ready | Approx. 4.0 W | ||
Sleep | Approx. 2.0 W | ||
Power Down | Approx. 0.4 W | ||

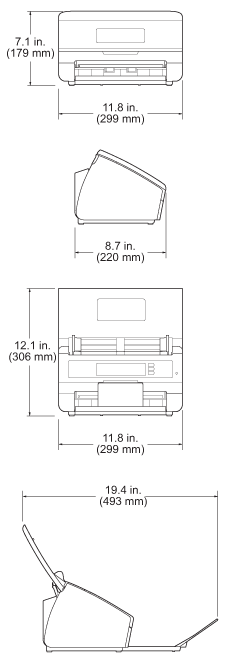

Dimensions |  | ||
Weights | Approx. 7.9 lb (3.6 kg) | ||
Temperature | Operating | 41 to 95 °F (5 to 35 °C) | |
Humidity | Operating | 20 to 80 % | |
ADF (automatic document feeder) | Up to 50 pages (Paper: 20 lb (80 g/m2) Legal size, or less than 0.2 in. (5 mm)) | ||
Document Size | Multiple Paper | Width | 2.0 in. to 8.5 in. (51 mm to 215.9 mm) |
Length | 2.76 in. to 14 in. (70 mm to 355.6 mm) | ||
Single Paper | Width | 2.0 in. to 8.5 in. (51 mm to 215.9 mm) | |
Length | 2.76 in. to 34.0 in. (70 mm to 863 mm) | ||
| | |
