Single Layout Printing

[URL scheme]

Configure the URL scheme as shown below:

brotherwebprint://print?filename=Template.lbx&size=26x76.bin&copies=1&text_TEXT=sample&barcode_BARCODE=12345

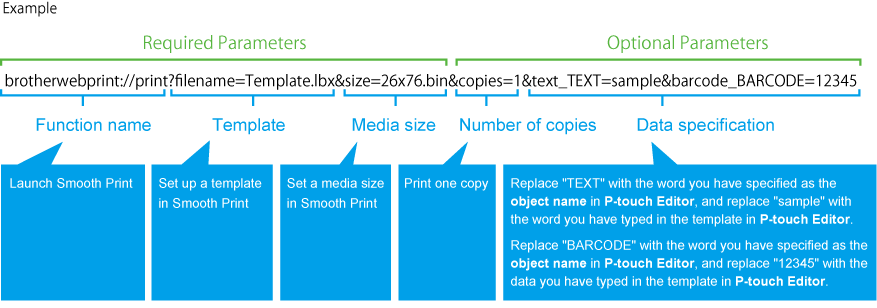

Example

[HTTP]

Configure the HTTP as shown below:

Single Layout Printing via HTTP (Android™ only)

http://localhost:8088/print?filename=Template.lbx&size=26x76.bin&copies=1&text_TEXT=sample&barcode_BARCODE=12345

Sample response for Single Layout Printing via HTTP (Android™ only)

Success

<response>
  <result>SUCCESS</result>
</response>

Failure

<response>
  <result>The printer cover is open</result>
  <code>PrinterStatusErrorCoverOpen</code>
</response>

[Required parameters]

Make sure you specify the template and media size, as shown below, and ensure that both are URL-encoded.
Parameters can be in any order.

To use a LBX file or a media settings file (BIN file) from another app, share the files with Smooth Print using the "file sharing function" (an OS standard function).
Once the file is shared, specify the file name in the URL scheme before printing.

RJ, TD-2 and TD-4D series:

*When specifying the paper size using Optional parameters (media settings), it is not necessary to set the size parameter.

Parameter	Configurable setting	Example
filename	Single layout template file (.lbx) - Set local or Internet path	Local path: file.lbx Internet path: http%3A%2F%2Fexample.com%2F%E3%82%B5%E3%83%B3%E3%83%97%E3%83%AB.lbx
size	Media settings file (bin) - Set local or Internet path	Local path: 26x76.bin Internet path: http%3A%2F%2Fexample.com%2F%E3%82%B5%E3%83%B3%E3%83%97%E3%83%AB.bin

MW, PJ, PT, QL series:

*PJ series does not support the A5 landscape paper size.

*For PJ series, when specifying the paper size using Optional parameters (media settings), it is not necessary to set the size parameter.

Parameter	Configurable setting	Example
filename	Single layout template file (.lbx) - Set local or Internet path	Local path: file.lbx Internet path: http%3A%2F%2Fexample.com%2F%E3%82%B5%E3%83%B3%E3%83%97%E3%83%AB.lbx
size	For MW series, use the paper size ID for the "size" parameter. For PJ series, use the paper size ID for the "size" parameter. For QL series, use the paper size IDfor the "size" parameter. For PT series, use the paper size ID for the "size" parameter.	For MW series: A6 For PJ series: A4 For QL series: DieCutW62H29 For PT series: Width18mm

RJ-2035B, RJ-2055WB, RJ-3035B, RJ-3055WB, TD-4T and TJ series:

Parameter	Configurable setting	Example
filename	Single layout template file (.lbx) - Set local or Internet path	local path: file.lbx Internet path: http%3A%2F%2Fexample.com%2F%E3%82%B5%E3%83%B3%E3%83%97%E3%83%AB.lbx
paperType	Paper types typeB	typeB
tapeWidth	Media width (mm)	50
tapeLength	Media length (mm)	50
speed	Print speed (inch/sec) 1, 1.5, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14	4
density	Set the brightness between 1 (light) and 15 (dark).	8
sensor	Sensor 0 = Gap sensor 1 = Black mark sensor	0
vertical	Gap between labels or height of black mark (mm) 0 or higher	0
offset	Print area offset (mm) 0 or higher	0
dpi	Resolution 203, 300, 600	300

* For information on your model's configurable print speed, see the "SPEED" command in the FBPL Command Reference guide [PDF].

"paperType" parameter settings

✓: supported, -: not supported

paperType	roll	dieCut	markRoll	custom	typeB
tapeWidth	✓	✓	✓	✓	✓
margin_top	✓	✓	✓	-	✓
margin_left	✓	✓	✓	-	✓
margin_bottom	✓	✓	✓	-	✓
margin_right	✓	✓	✓	-	✓
unit	✓	✓	✓	-	-
tapeLength	-	✓	✓	✓	✓
gapLength	-	✓	-	-	-
markVerticalOffset	-	-	✓	-	-
markLength	-	-	✓	-	-
offset	-	-	-	-	✓
sensor	-	-	-	-	✓
conveying_offset	-	-	-	-	✓

[Optional parameters]

See below.
Optional parameters

URL Encoding

Parameter settings must be UTF-8-encoded and URL-encoded, including colons and slashes.
File names are case-sensitive except when they are used in Android™ local paths.
