Setting up Smooth Print
[1] On a Windows PC, prepare a template file and a media settings file to use with Smooth Print.
[How to create a template file]
* Supported fonts: Atlanta, Belgium, Bermuda Script, Brussels, Brussels Condensed, Connecticut, Germany, Helsinki, Helsinki Narrow, Istanbul, Letter Gothic, PT Utah Condensed, San Diego, US, Utah
* Before printing in black and red on the QL-820NWBc or QL-820NWB, use P-touch Editor to create a template file for black and red label printing.
* The following parameters in P-touch Editor are not supported.
Numbering function, Database connection, OLE object.

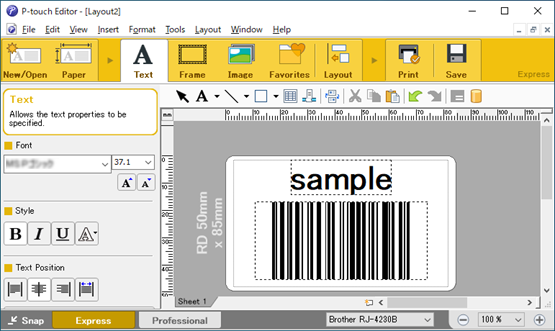

a. Start P-touch Editor to create a layout LBX file.

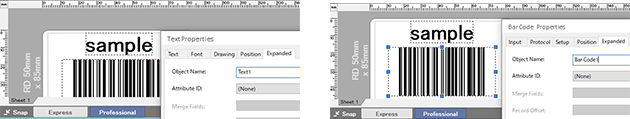

b. Type the name for each piece of text or barcode you add to the layout in the Object name field.
c. In the P-touch Editor menu, click File > Save As and select "Template (*.lbx)" as the file type.
[How to create a media settings file (BIN file)]
* A media settings file must be created for each model, except for the models in the TD-4T and TJ series.

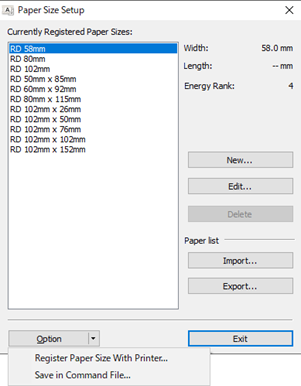

a. Open the Printer Setting Tool and launch the Paper Size Setup Tool.
b. Click New... to enter your label size and click Add to register a custom paper size.
c. Click Options and select Save in Command File....
