Create and Print Labels Using P-touch Editor (Windows)

To use your Labeling System with your Windows computer, install your model's printer driver and P-touch Editor on your computer.

For the latest drivers and software, go to your model's Downloads page at support.brother.com/downloads.

  1. Start P-touch Editor image.

    Click Start>Brother P-touch>P-touch Editor, or double-click the P-touch Editor icon on the desktop.

    *Depending on your computer's operating system, the Brother P-touch folder may or may not be created.

  2. Make sure your model's name is selected on the Home screen.

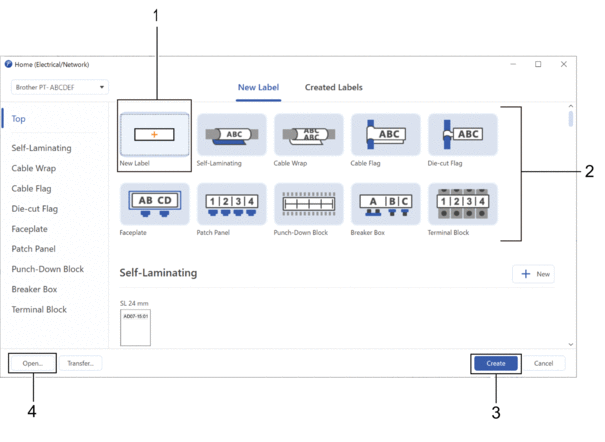

  3. Do one of the following:
    • To create a new layout, click the New Label tab, and then click the New Label button (1).
    • To create a new layout using a preset layout, click the New Label tab, and then click a category button (2), select a template, and then click Create (3).
    • To open an existing layout, click Open (4).
  4. Click the Print icon.
  5. Select the print settings you want, and then click Print.
    To change how P-touch Editor starts, open P-touch Editor and click File>Options. Select the Mode option on the left side of the screen, and then select the Home/Office or Electrical/Network option. Click OK to apply the setting.
