Product Dimensions
All measured values are in millimeters.
Printer
Front view
Back view
Top view / Bottom view

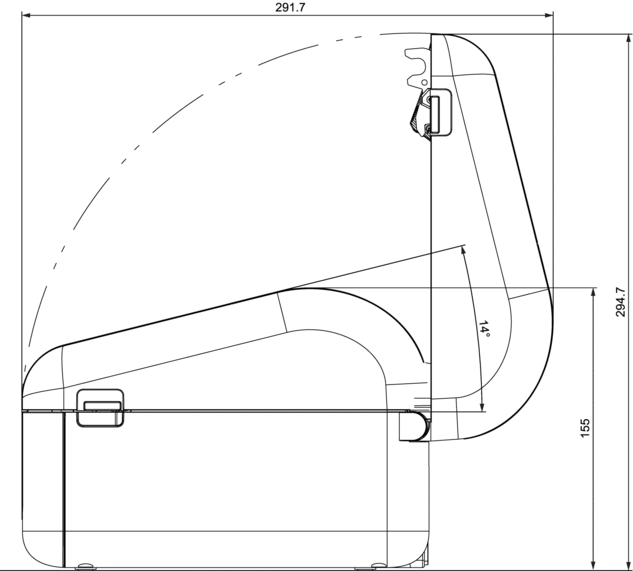

Side view
Cutter Unit Installed
Side view
Peeler Unit Installed
Side view
Linerless Cutter Unit Installed
Side view
