Create Transfer Files and Transfer Package Files (Windows)
Use P-touch Transfer Manager to save template data created using P-touch Editor in BLF or PDZ format, and transfer the files in this format to a printer from a computer or mobile device.
You can also print files in the BLF format using Mass Storage Mode.
![image](../img/GUID-9540AC9A-5EBB-4A02-8636-DC36399ABEA3-low.gif)

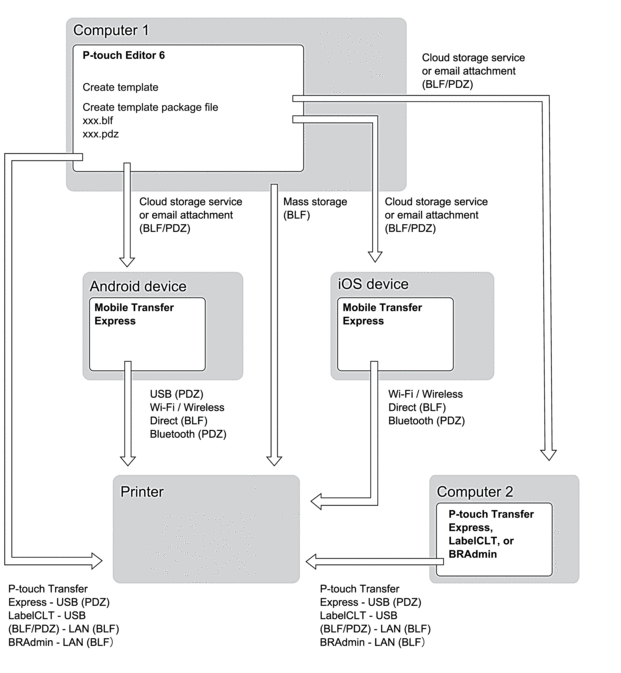

Template Transfer Method | File Format |
---|---|
From a mobile device (Using Mobile Transfer Express)
| via USB
| PDZ |
via Wi-Fi (TD-2350D/TD-2350DF/TD-2350DSA) | BLF |
via Wireless Direct (TD-2350D/TD-2350DF/TD-2350DSA) | BLF |
via Bluetooth
| PDZ |
Mass storage
| BLF |
From a computer | P-touch Transfer Express | PDZ |
Mass storage | BLF |
- Create the template using P-touch Editor, and then transfer it to P-touch Transfer Manager.
- For more information, see Related Information.
- When transferring a new template, make sure you specify a Key Assign number (in P-touch Transfer Manager) that is not currently used. If the specified Key Assign number is already being used, the existing template will be overwritten with the new one.
- Without connecting the printer to the computer, select the Configurations folder in the P-touch Transfer Manager window, and then select the template you want to save.You can select multiple templates at the same time.
- Click .
- NOTE
- The Save Transfer File button appears when the printer is disconnected from the computer or it is offline.
- If you click the Save Transfer File button after selecting Configurations, all templates in the folder are saved as the Transfer file (BLF) or Transfer Package file (PDZ).
- You can combine multiple templates into a single Transfer file (BLF) or Transfer Package file (PDZ).
- In the Save as type field, select the template format you want, and then type in the name and save the template.
