MFC-L8690CDW

FAQs & Troubleshooting

FAQs & Troubleshooting

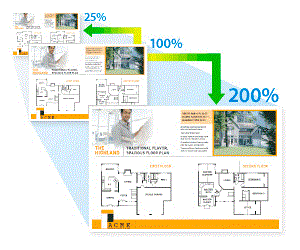

Enlarge or Reduce Copied Images

Select an enlargement or reduction ratio to resize your copied data.
  1. Load your document.
  2. Press [Copy].
  3. Enter the number of copies.
  4. Press [Options]>[Enlarge/Reduce].
  5. Swipe up or down or press or to display the available options, and then press the option you want.
  6. Do one of the following:
    • If you select [Enlarge] or [Reduce], press the enlargement or reduction ratio you want to use.
    • If you select [Custom(25-400%)], press (backspace) to erase the displayed percentage, or press to move the cursor, and then enter an enlargement or reduction ratio from [25] to [400].

      Press [OK].

    • If you selected [100%], go to the next step.
  7. When finished, press [OK]. (If the [OK] button is displayed.)
  8. Press [Colour Start] or [Mono Start].

If your question was not answered, have you checked other FAQs?

Have you checked the manuals?

If you need further assistance, please contact Brother customer service:

Related Models

MFC-L8690CDW, MFC-L8900CDW
