Print as a Booklet (Windows®)

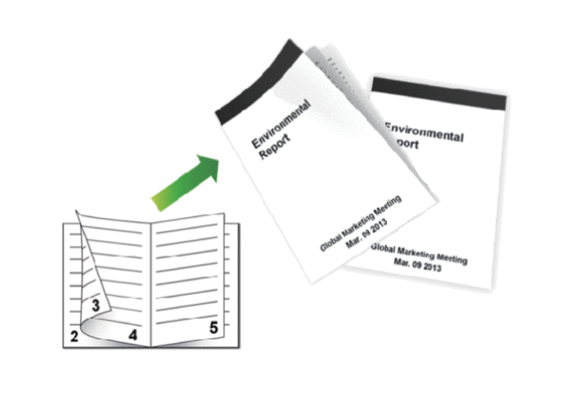

Use this option to print a document in booklet format using 2-sided printing. The document's pages will be arranged according to the correct page number and will allow you to fold the print output at the centre, without having to change the order of the printed pages.

  • Select A4 sized paper when using the automatic 2-sided printing function.
  • Make sure the back cover is closed.
  • If paper is curled, straighten it and put it back in the paper tray.
  • Use regular paper or thin paper. DO NOT use bond paper.
  • If the paper is too thin, it may wrinkle.
  • When you use the manual 2-sided printing function, it is possible there may be paper jams or poor print quality.

  1. Select the print command in your application.
  2. Select Brother XXX-XXXX (where XXXX is the name of your model), and then click the printing properties or preferences button.
    The printer driver window appears.
  3. In the Orientation field, select the Portrait or Landscape option to set the orientation of your printout.

    If your application contains a similar setting, we recommend that you set the orientation using the application.

  4. Click the 2-sided / Booklet drop-down list, and then select the Booklet or Booklet (Manual) option.
    Option
    Description
    Booklet (Available only for certain models)
    Automatically prints as a booklet.
    Booklet (Manual)
    Manually prints as a booklet.
  5. Click the 2-sided Settings button.
  6. Select one of the options from the 2-sided Type menu.
    There are two types of 2-sided binding directions available for each orientation:
    Option for Portrait
    Description
    Left Binding
    Right Binding
    Option for Landscape
    Description
    Top Binding
    Bottom Binding
  7. Select one of the options from the Booklet Printing Method menu.
    Option
    Description
    All Pages at Once
    Every page will be printed in booklet format (four pages to every piece of paper, two pages per side). Fold your printout in the centre to create the booklet.
    Divide into Sets
    This option prints the whole booklet in smaller individual booklet sets, allowing you to fold at the centre of the smaller individual booklet sets without having to change the order of the printed pages. You can specify the number of sheets in each smaller booklet set (from 1-15). This option can be helpful when folding a printed booklet that has a large number of pages.
  8. Select the Binding Offset check box if you want to specify the offset for binding in inches or millimetres.
  9. Click OK.
  10. Change other printer settings if needed.
  11. Do one of the following:
    • For automatic booklet printing, click OK again, and then complete your print operation.
    • For manual booklet printing, click OK again and follow the on-screen instructions.
