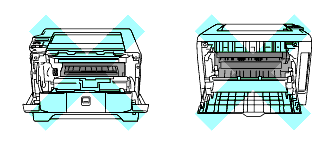

If a paper jam occurs behind the face-up output tray, follow these steps:

1. Press the cover release button and then open the front cover.



2. Slowly take out the drum unit and toner cartridge assembly. The jammed paper will be pulled out with the drum unit and toner cartridge assembly.



   • We recommend that you put the drum unit and toner cartridge assembly on a piece of disposable paper or cloth in case you accidentally spill or scatter toner.

   • To prevent damage to the printer from static electricity, DO NOT touch the electrodes shown in the illustration.



3. Open the back cover.



4. Pull the tabs at the left and right hand sides (see Fig. A) toward you to open the fuser cover (1).





   Fig. B shows both of the back cover and the fuser cover are open.




   There are two kinds of covers at the rear of the printer. Please make sure to open both the back cover (step 7) and the fuser cover (step8).





5. Using both hands, gently pull the jammed paper out of the fuser unit.





   After you have just used the printer, some internal parts of the printer will be extremely hot. Wait for the printer to cool down before you touch the internal parts of the printer.



6. Put the drum unit and toner cartridge assembly back in the printer (press firmly).

7. Fully close the front and back covers.
